Shutao 4PCS BTS7960 43A H-bridge Double High Power Motor Driver Module/Diy Smart Car Current Diagnostic

4PCS BTS7960 43A H-bridge Double High Power Motor Driver Module/Diy Smart Car Current Diagnostic

Shutao 4PCS BTS7960 43A H-bridge Double High Power Motor Driver Module/Diy Smart Car Current Diagnostic

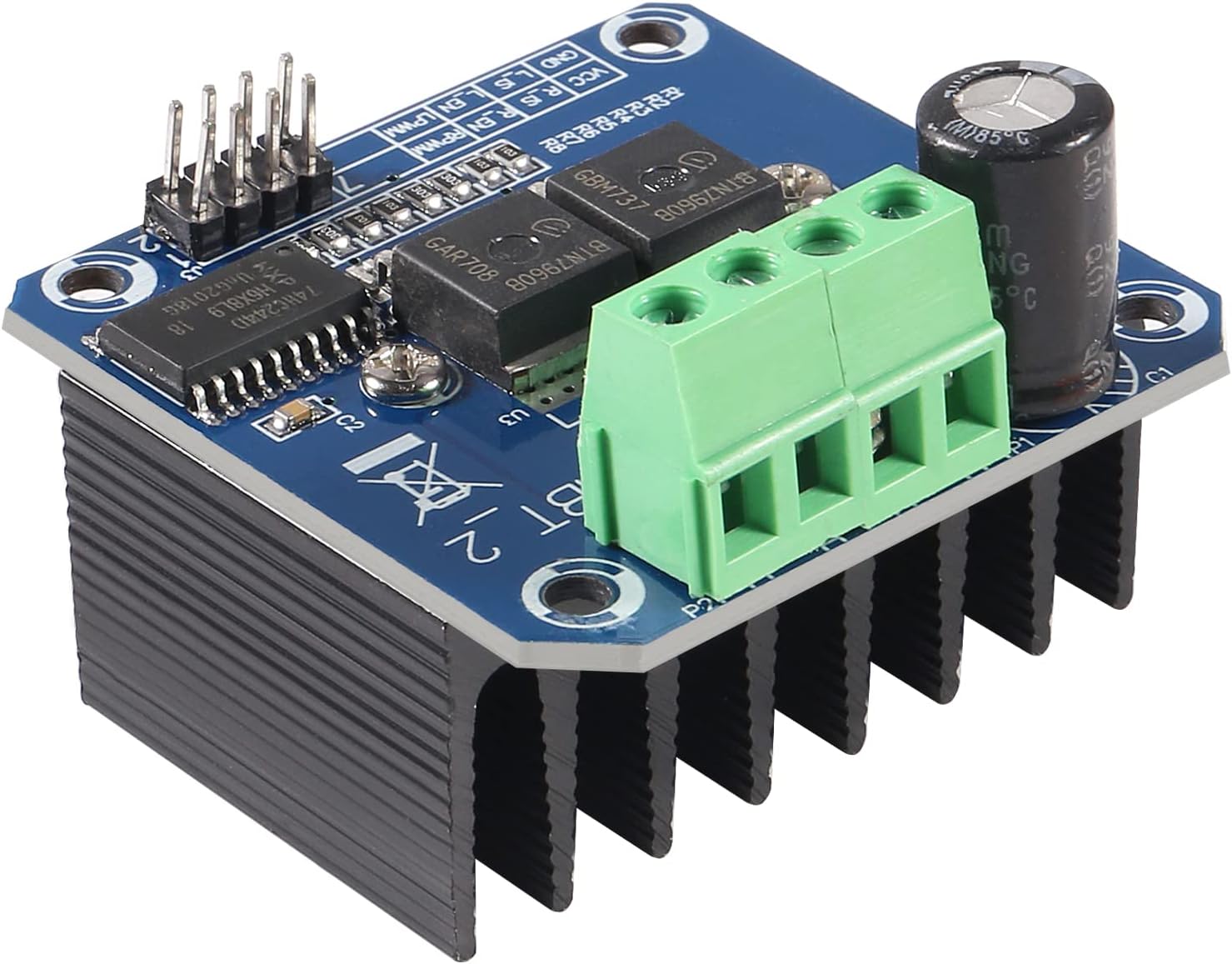

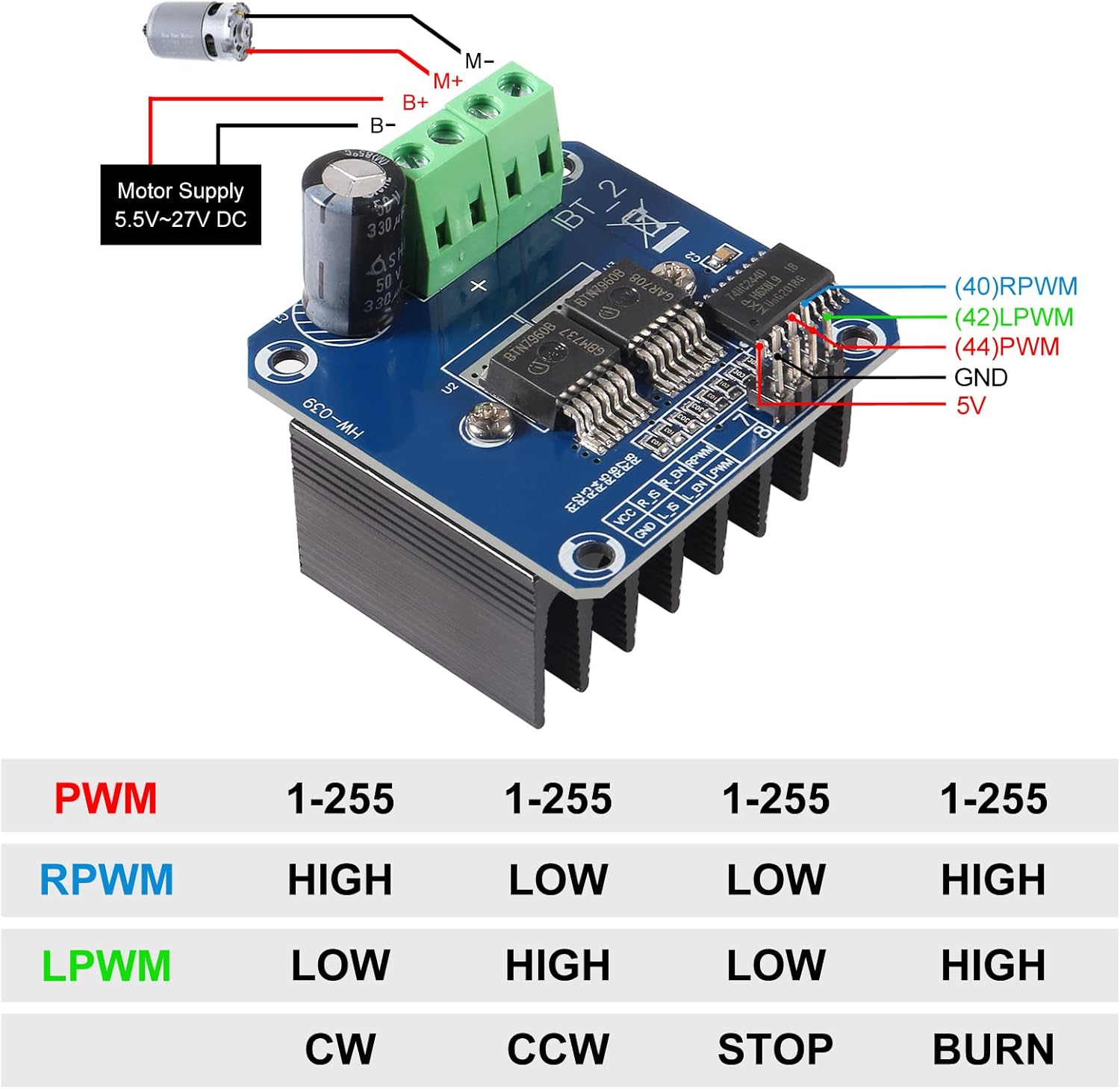

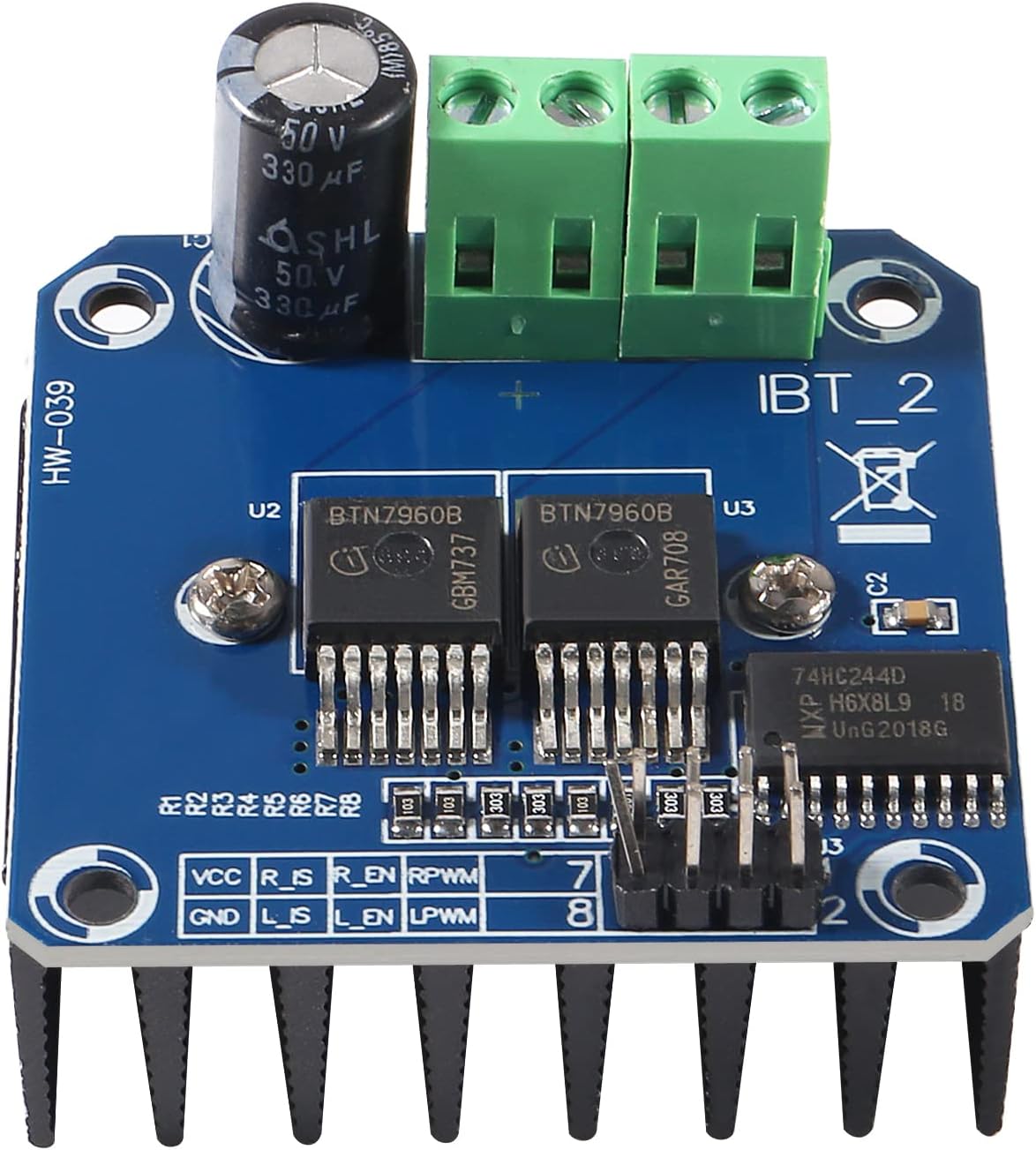

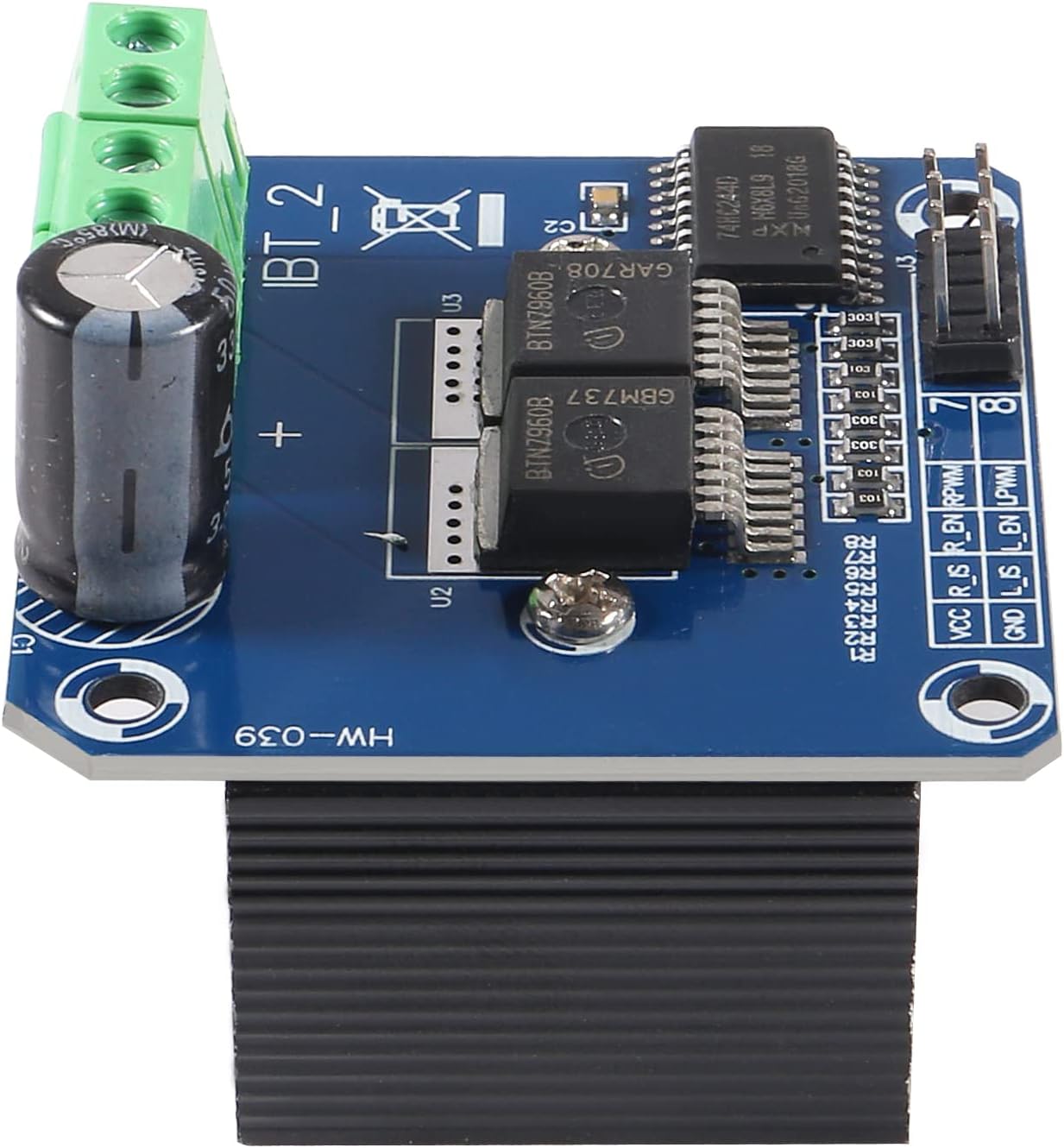

Definition: RPWM: Right Turn PWM LPWM: Left Turn PWM R_EN: Right Turn Enable (High Active) L_EN: Left Turn Enable (High Active) R_IS: Right Turn Current Warning (May Leave Floating) L_IS: Left Turn Current Warning (May Leave Floating) VCC: (5V) GND Connections: Method 1: VCC: 5V from Microcontroller(MCU) GND: GND from Microcontroller(MCU) L_PWM: PWM or 5V from Microcontroller(MCU) for CCW(CW) Turns R_PWM: PWM or 5V from Microcontroller(MCU) for CW(CCW) Turns R_EN and L_EN: 5V from Microcontroller(MCU) Method 2: VCC: 5V from Microcontroller(MCU) GND: GND from Microcontroller(MCU) L_PWM: 5V from Microcontroller(MCU) for CCW(CW) Turns R_PWM: 5V from Microcontroller(MCU) for CW(CCW) Turns R_EN and L_EN: PWM from Microcontroller(MCU) Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5V power supply (can share with MCU 5V); Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output; isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V; Package include: 4 x BTS7960 motor driver module

Brand: Shutao

high power, double high, current diagnostic, module diy, car current, driver module, diy, 4pcs bts7960, module, 43a bridge, double, power accessories Electronics Power Accessories Power Converters

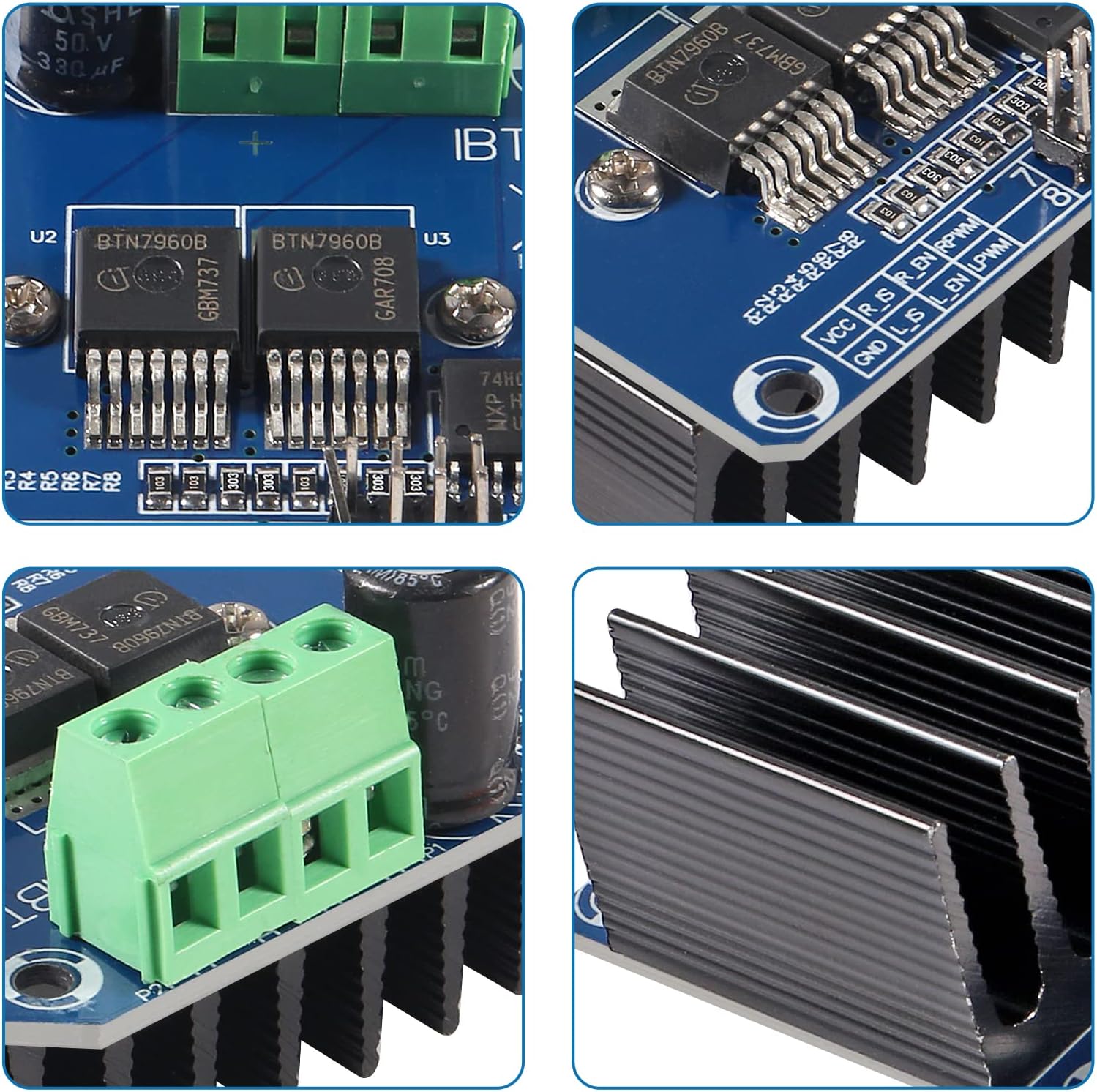

Key Features

• ✓ This driver uses chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection.
• ✓ Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver, high-current 43A
• ✓ 5V isolate with MCU, and effectively protect MCU
• ✓ 5V power indicator on board

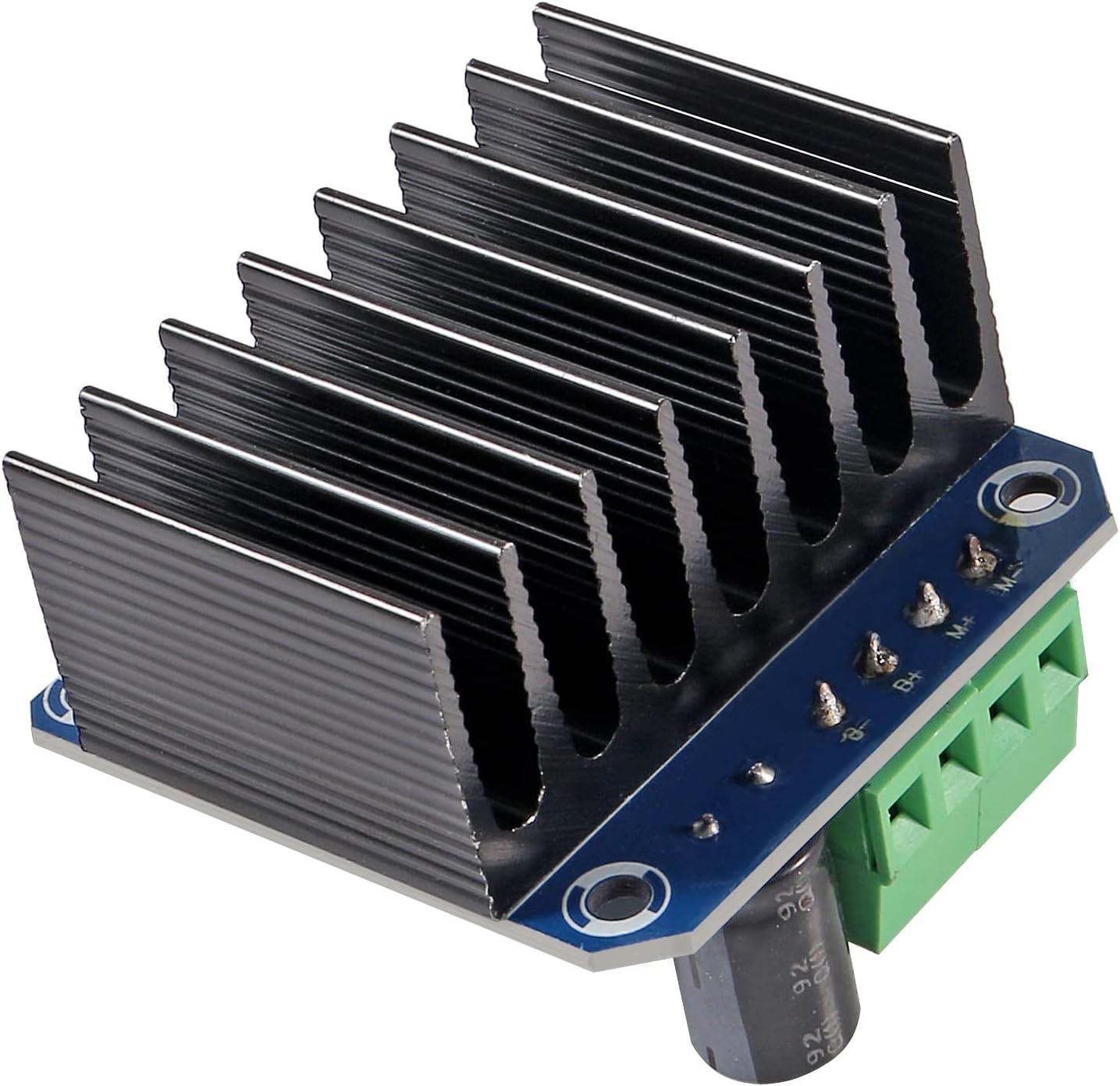

• ✓ Voltage indication of motor driver output end

Product Details

• ✓ Package Dimensions: 9.06 x 5.55 x 2.28 inches
• ✓ Item Weight: 9.2 ounces
